  • Introduction

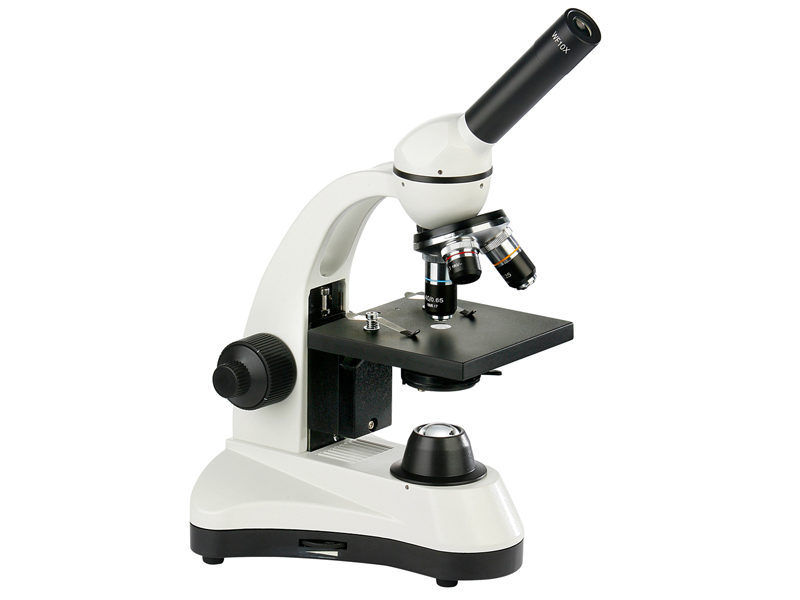

  • L790series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image and convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.

    Features
    ▲        With wide field eyepieces and achromatic objectives, the field of view is clear.

    ▲        Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm.

    ▲        High brightness white LED lamp transmission illumination

  • Standard Configuration
    Model
    L790A
    L790B
    Eyepiece
    WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 40X/0.65(Spring)

    Achromatic100X/1.25(Spring  oil)
    Eyepiece tube
    Monocular,360˚ rotatable (Inclination of 45˚)
    Nosepiece
    Triple(Frontward ball bearing outer locating)
    Quadruple (Frontward ball bearing outer locating)
    Focus system
    Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm
    Stage
    Fixed(Size:120mmX120mm, With five holes fixed iris diaphragm)
    Double-layer mechanical, size:125mmX115mm, move range:70mmX30mm
    Abbe condenser

    Rack &pinion adjustment
    Collector
    For LED lamp
    Light source
    LED  High brightness white LED lamp

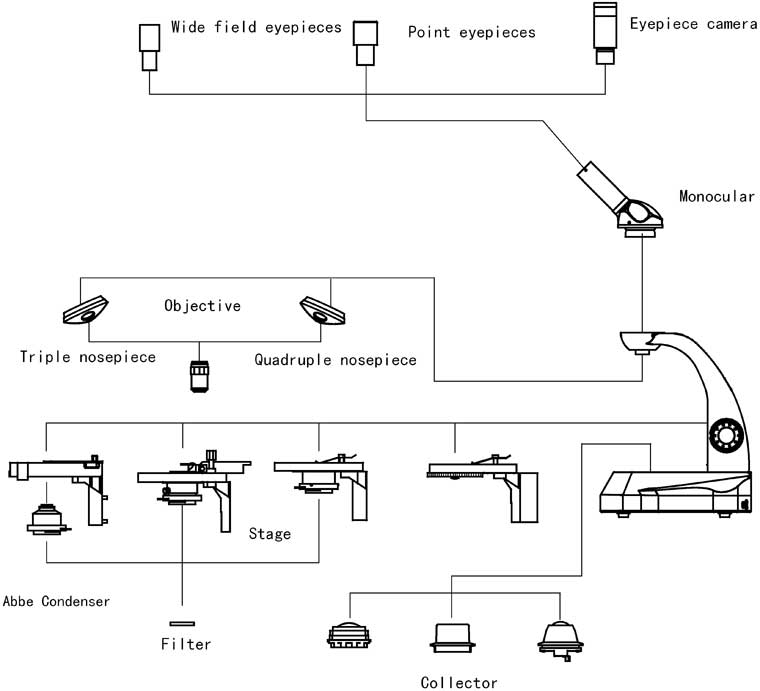

    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Point  10X(Φ18mm)
    1043010
    Stage
    Fixed(Size:120mmX120mm, With single lens and iris diaphragm)
    040001
    Fixed(Size:120mmX120mm, with slide moving holder and Abbe condenser)
    040004
    Filter
    Blue filter
    115001
    Green filter
    115002
    Yellow filter
    115003
    Frosted filter
    115004
    Collector
    For Fluorescent and Halogen lamp
    060002
    For Incandescent lamp
    060004
    Light source
    High brightness white LED lamp
    With adapter
    073011
    High brightness white LED lamp
    With adapter and charge batteries
    073012
    Halogen lamp
    12V 20W
    070019
    Fluorescent lamp
    110V/220V, 5W  Can be choose
    071006
    Incandescent lamp
    220V/110V, 20W Can be choose
    072004
    Camera
    Photography
    USB Output
    1096001
    VIDEO Output
    1108001
    Adapter
    (For LED illumination)
    Input: 230V¡«50/60HZ   Output: 9V  500mA
    101001
    Input: 110V¡«50/60HZ   Output: 9V  500mA
    101002
