  • Introduction

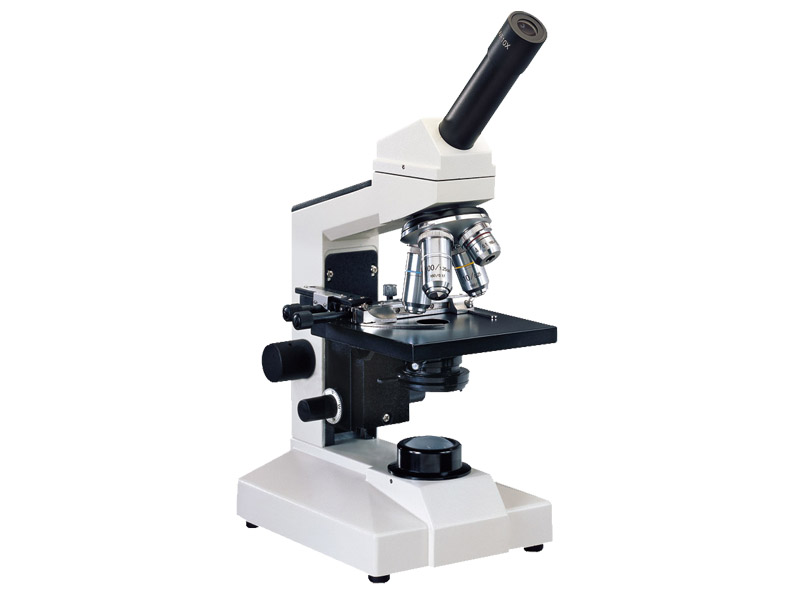

  • L800series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clearimage, wide field, convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medicaltreatment, teaching demonstration.


    Features
    ▲  With wide field eyepieces and achromatic objectives, the field of view is widely and clear

    ▲  Separate coarse/fine system focus or coaxial coarse/fine focus system can be chosen, minimum division of fine focusing: 4μm

    ▲  220V/110V 20W incandescent lamp transmission illumination.


  • Standard Configuration

    Model
    L800A
    L800B
    Eyepiece
    Wide field WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Eyepiece tube
    Monocular,360˚ rotatable (Inclination of 45˚)
    Monocular,360˚ rotatable (Inclination of 45˚)
    Focus system
    Separate coarse/fine system focus. Minimum division of fine focusing: 4μm
    Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm
    Nosepiece
    Quadruple(Frontward ball bearing outer locating)
    Stage
    Fixed, with slide moving holder Size:120mmX120mm, move range:70mmX30mm
    Abbe condenser
    N.A.1.25 Spiral adjustment
    Filter
    Blue filter
    Frosted filter
    Collector
    For incandescent lamp
    Light source
    220V/110V 20W, Incandescent lamp



















    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Point  10X(Φ18mm)
    1043010
    Nosepiece
    Triple (Frontward ball bearing outer locating)
    030001
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Light source
    Fluorescent lamp
    5W,110V/220V Can be choose
    071001
    LED Illumination
    High brightness white
    073001
    Reflecting mirror
    Plane-concave reflecting mirror with stand
    074001
    Camera
    Photography
    USB Output
    1096001
    VIDEO Output
    1108001
    Adapter(For LED illumination)
    Input: 230V¡«50/60HZ   Output: 9V  500mA
    101001
    Input: 110V¡«50/60HZ   Output: 9V  500mA
    101002
