  • Introduction

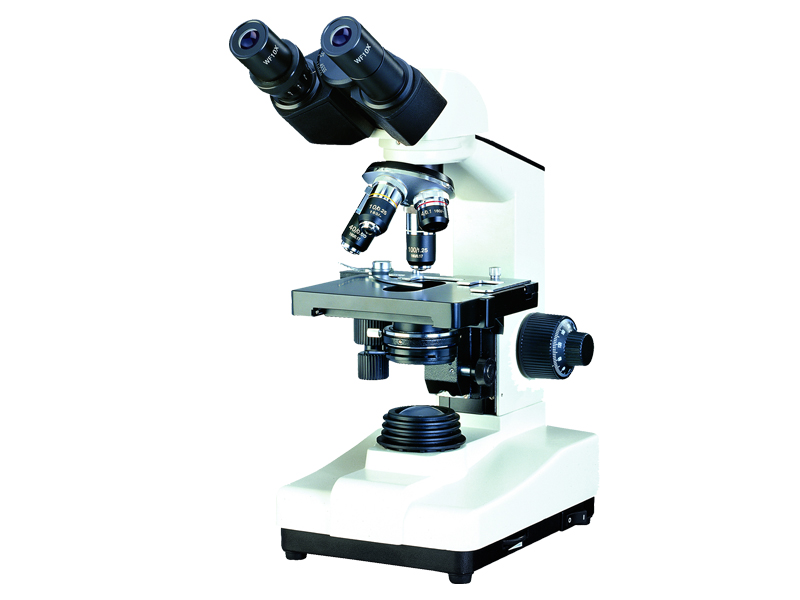

  • L135 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image and wide view field through optical system. They can be broadly applied in biology medicine, agriculture, industry etc. They are the ideal instrument for medical treatment, teaching and scientific research.

    Features
    ▲  With wide field eyepieces and achromatic objectives, the field of view is widely and clear
    ▲  L135A、L135C: Coaxial coarse/fine focus system with up stop; Minimum division of fine focusing: 4μm. L135B、L135D: Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
    ▲  12 Volt 20 Watt Halogen lamp with brightness control

  • Standard Configuration

    Model
    L135A
    L135B
    L135C
    L135D
    Eyepiece
    Wide field WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm
     Coaxial coarse/fine focus system, with tensional adjustable and up stop, Minimum division of fine focusing: 4μm
    Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm
    Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
    Nosepiece
    Quadruple
    (Frontward ball bearing outer locating)
    Quadruple
    (Backward inner locating on ball bearing)
    Stage
    Double layer mechanical (Size:125mmX115mm, Move range: 70mmX30mm)
    Abbe Condenser
    N.A.1.25  Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
    12Volt 20 Watt Halogen lamp with brightness control
























    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051510
    Dividing  10X(Φ18mm)
    1021010
    Eyepieces tube
    Monocular
    Inclination of 45˚
    010003
    Binocular
    Sliding(Inclination of 45˚)
    011202
    Dual viewing tube
    Inclination of 30˚
    013001
    Nosepiece
    Triple
    Frontward Ball bearing outer locating
    030001
    Stage
    Fixed with slide moving holder
    Size:120mmX120mm, Moving range:70mmX30mm
    040005
    Fixed
    Size:120mmX120mm
    040001
    Filter
    Green filter
    115002
    Yellow filter
    115003
    Light source
    Fluorescent lamp
    Can be choose 5W,110V/220V
    071002
    Ordinary lamp
    Can be choose 110V/220V
    072003
    LED Illumination
    High brightness white
    073002
    Reflecting mirror
    Plane-concave reflecting mirror with stand
    074002
    Camera
    Eyepiece camera
    USB Output
    1096001
    VIDEO Output
    1108001
    Adapter(For LED illumination)
     Input: 230V¡«50/60HZ   Output: 9V  500mA
    101001
    Input: 110V¡«50/60HZ   Output: 9V  500mA
    101002
    Facility polarize
    Polarizer(360° rotatable stage)
    111001
    Analyzer
    111101
