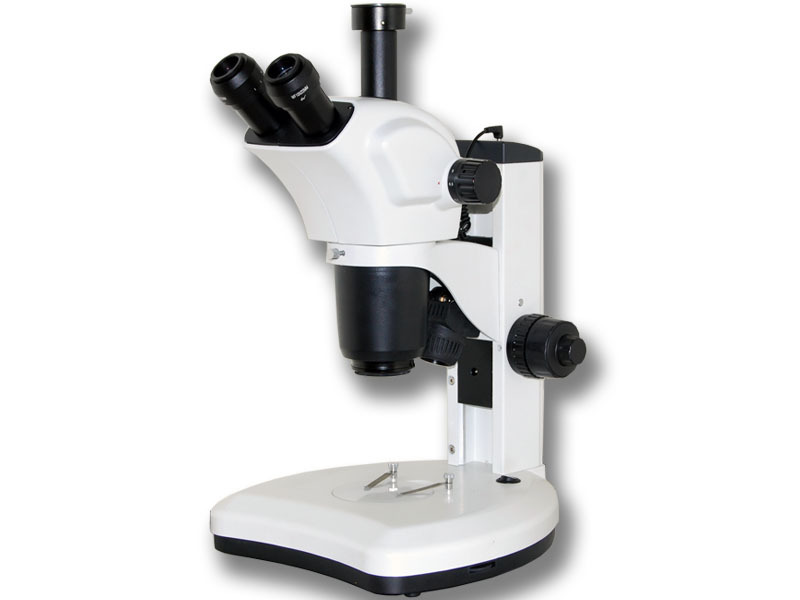

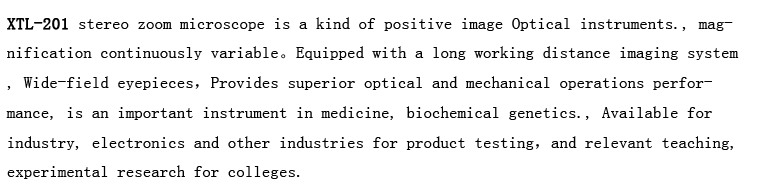

  • Introduction











  • Eyepieces

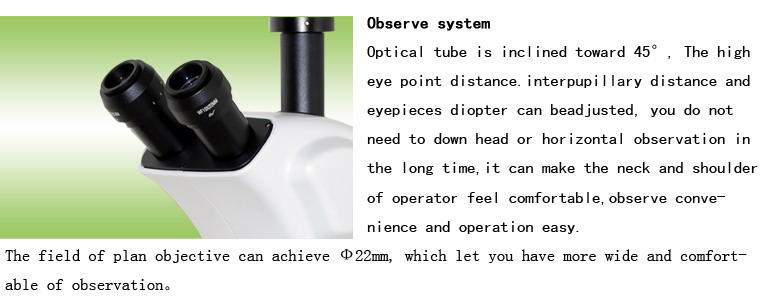

    WF10X (Φ22mm)， high eye point
     Objective

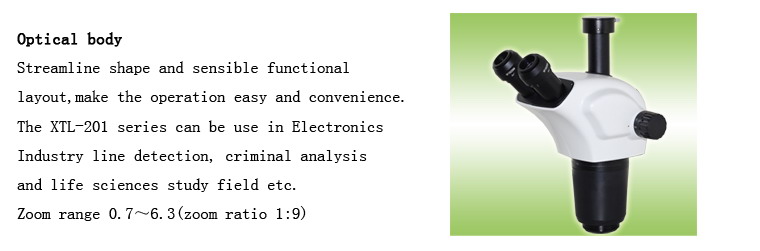

    Stereo zoom objective
    Zoom range 0.7～6.3(zoom ratio 1:9)
    Work distance110mm
    Total magnification
     System standard ratio 7～63
    Field range
    Φ33.8～Φ3.49
    Vertical effective movement
     83mm

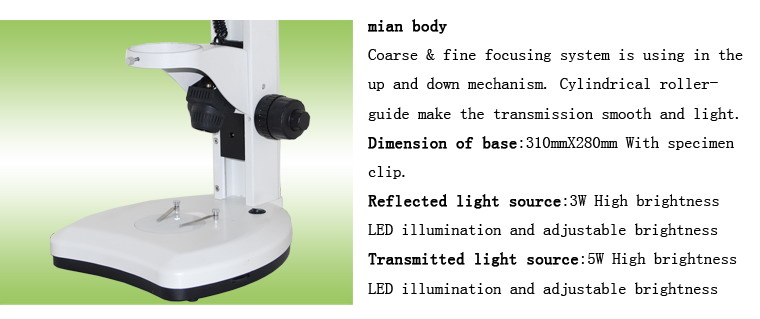

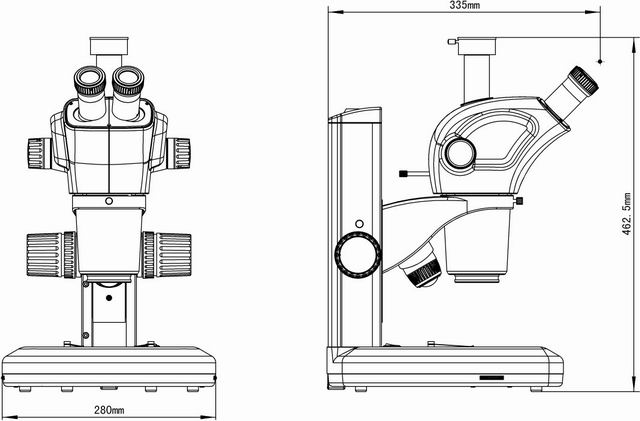

     Base size
    310mmX280mm
     Light scoure
     Reflected illuminating 3W High brightness LED
    Transmitted illuminating 5W High brightness LED

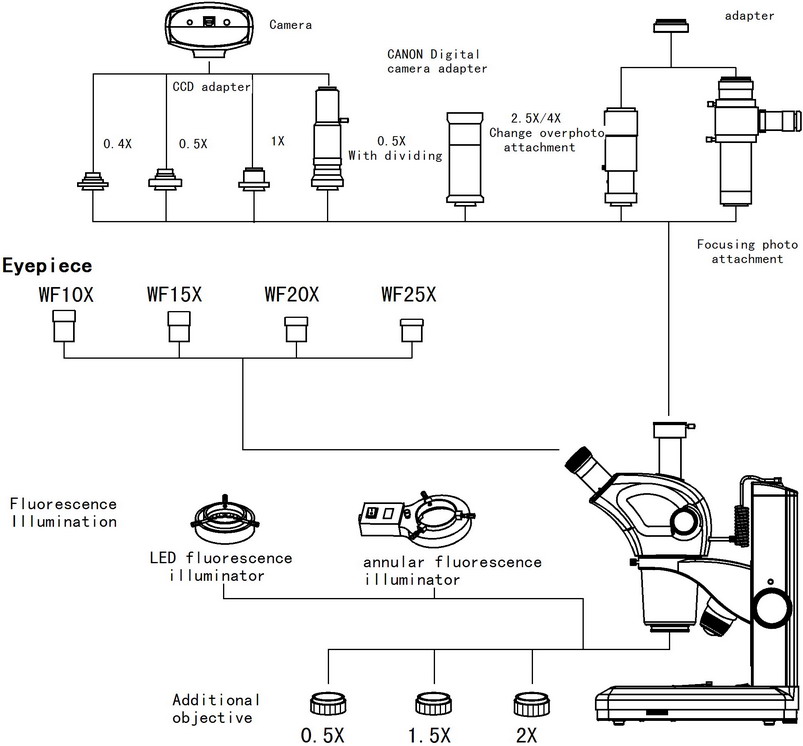

       Optional accessories
    Name
     Sort/Technique parameter
    Eyepiece
    Wide field eyepiece WF15X(Φ15mm)
    Wide field eyepiece WF20X(Φ12mm)
    Wide field eyepiece WF25X(Φ9mm)
    Dividing eyepiece WF10X （Φ22mm）
    Illuminator

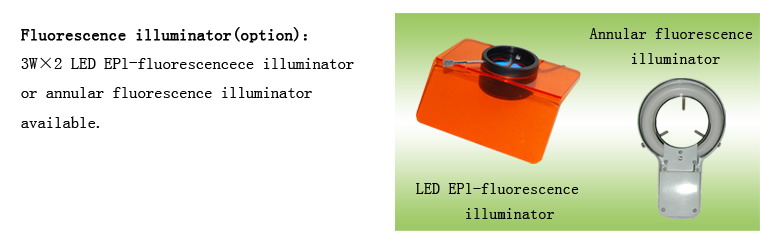

    LED EPI-fluorescence illuminator or annular fluorescence illuminator
     Additional objective
    0.5X Working distance:165mm/1.5X /2X
    CCD adapter
    0.4X/0.5X/1X/0.5X with dividing
    camera
    DV-130 / 300 / 500 / 1000 With USB output
    Digital camera adapter
    CANON（EF）/NIKON（F）
