• Introduction

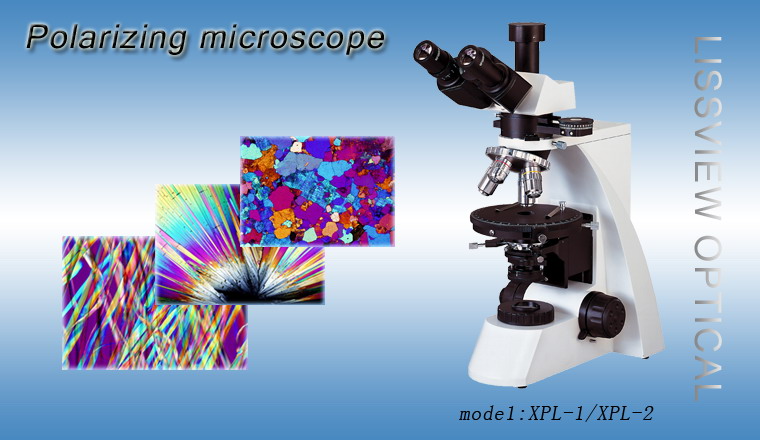

  • XPL-1/XPL-2 series polarizing microscope are appled to differentiate componen of matters that have birefraction characterist,as a sort of import tool in pharmacology, geognosy, mechanism, metallurgy to research crystal, mineral, rock and metallurgical form. The instrument, are equipped with strain-free plan achromatic objectives and wide field eyepieces, high precision rotatable polarizing stage and excellent accessories. They can be applied in single polarizing, orthogonal, conoscope. These productes have good sculpt and ateady mechanical structure, so that operate comfortably and expediently. They are the ideal instruments for factory,mine, scientific research and university to check, research and teaching ect.










  • Specification
    Model
    XPL-1Cover glass thickness0.17
    XPL-2No Cover glass
    Eyepiece
    Wide field WF10Xfield number:Φ18mm)
    Dividing eyepiece 10Xfield number:Φ18mm)0.10mm/Div
    Strain-free plan achromatic objective
    PL 4X/0.10 POL W.D17.94mm
    PL L4X/0.12 POL W.D17.9 mm
    PL 10X/0.25 POL W.D8.8 mm
    PL L10X/0.25 POLW.D8.8 mm
    PL 40X/0.65 POLspring W.D0.56 mm
    PL L40X/0.60 POLspring
    W.D3.73 mm
    PL 100X/1.25 POLspringoil W.D0.36 mm
    PL L60X/0.70 POLspring W.D1.34 mm

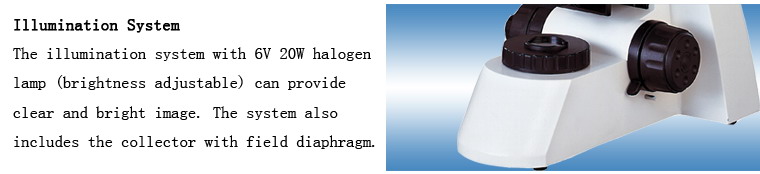

    Transmitted illuminating system
    6V20W halogen lamp,brightness adjustable 6V20W

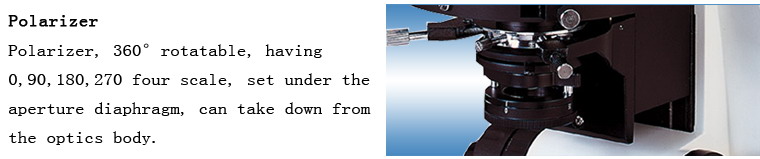

    Rtatable 360°have 0,90,180,270 scale
    Abbe condenser N.A.1.25 with iris diaphragm

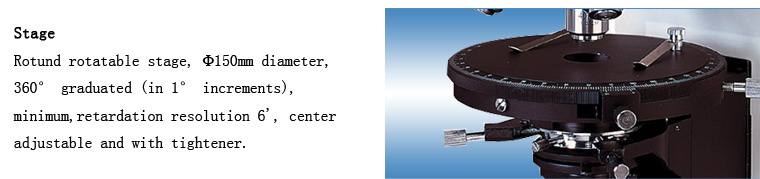

    Stage

    Rotatable stage,diameter Ø150mm,360°graduated(in 1°increments),minimum vernier division:6',center adjustable and with tightener.
    Nosepiece

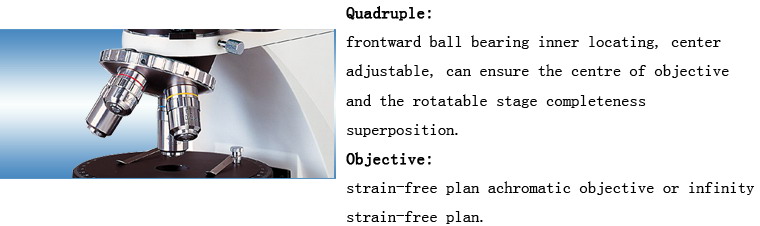

    Quadruple (the center of objective is adjustable)

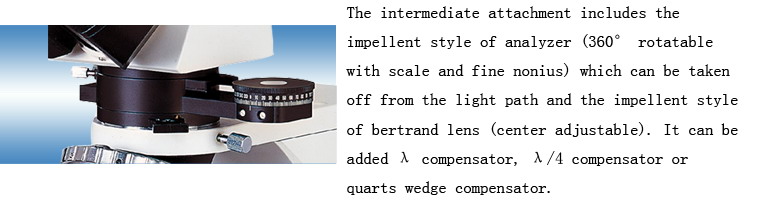

    Intermediate attachment
    Integrated analyzer,can be switched to normal or polarizing observe freely, enable 0~90° rotated and minimum vernier division:12'
    Pller bertrand lens and center adjustable
    λλ/4 and quarts wedge compensator

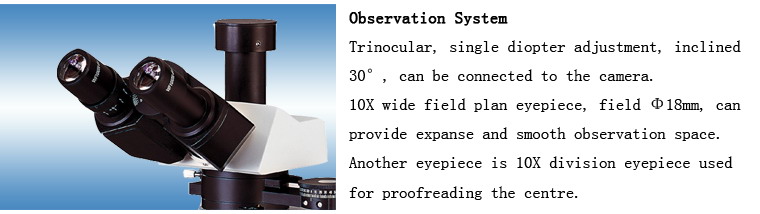

    Eyepiece tube
    Trinocular inclined 30°and enable to shoot in 100% light flux
    Focus system
    Coaxial coarse/fine focus with tension adjustable and up stop device,minimum division of fine focusing:2μm
    Optioal Accessory
    Objective
    Cover thickness:0.17
    20X60X
    No cover glass
    20X50X80X100XDry
    Slide movingholder
    Moving range30mm×25mm

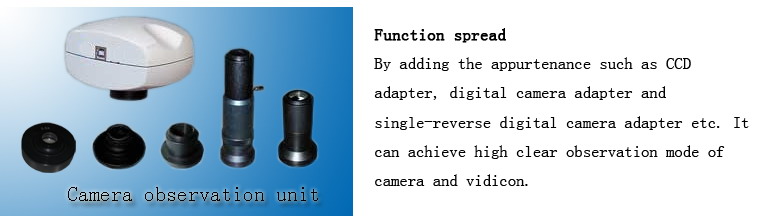

    CCD adapter
    0.5X1X0.5X with dividing
    Camera
    USB output1.3M/3.0M/5.0M/10.0 M pixel
    VIDEO output380/520 TV line
    Digital camera adapter
    CANONEF NIKONF
    Infinity optical systemModelXPL-1A/XPL-2A
