  • Introduction

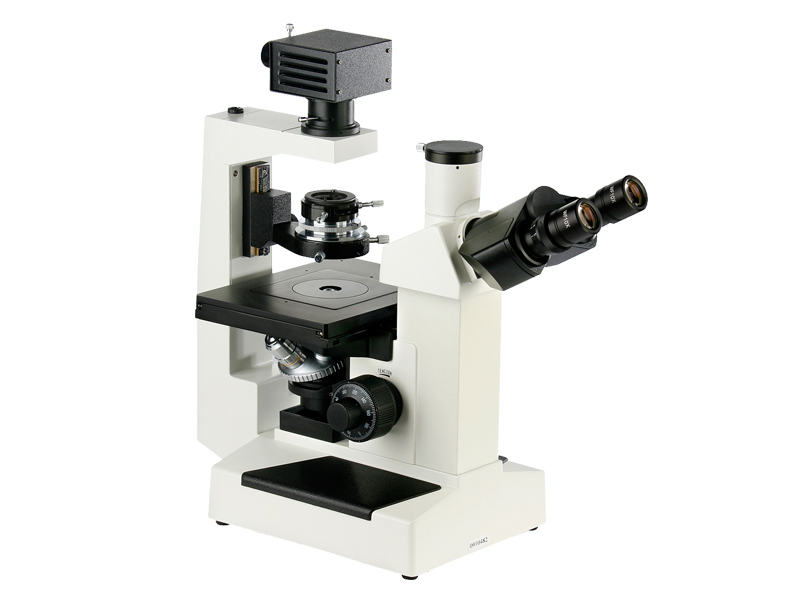

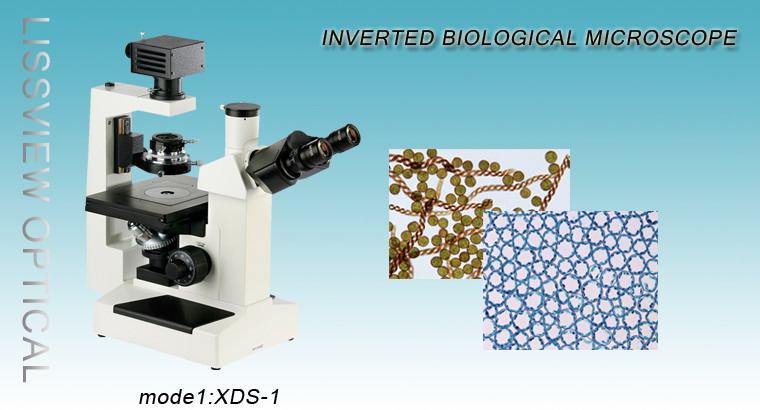

  •      XDS-1 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry etc.






  • Standard configuration

    Model
    XDS-1
    Eyepiece
    Wide field WF10X(¦µ20mm)
    Objective
    Long working distance plan achromatic PL L 10X/0.25
    Long working distance plan achromatic PL L 25X/0.40
    Long working distance plan achromatic PL L 40X/0.60
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP

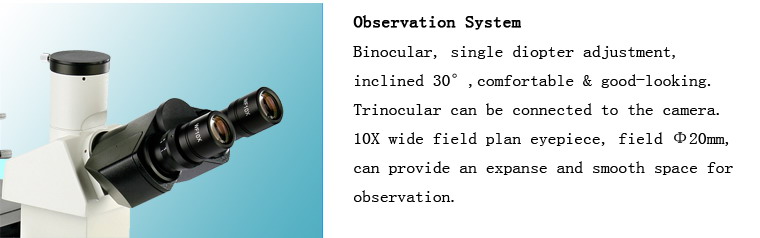

    Eyepiece tube
    Trinocular (Inclination of 30°, 100% image light for photography capable)
    Focus system
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Ball bearing inner locating)

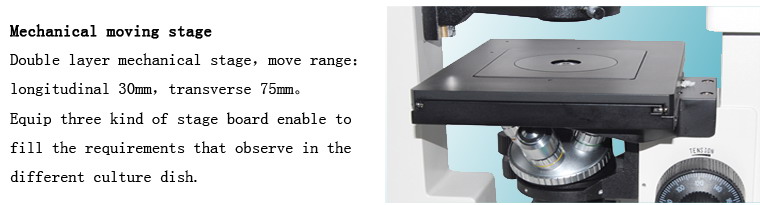

    Stage
    Double layer mechanical(Size200mmX152mm,moving range:75mmX30mm)
    Shelf of specimen
    Match to install ¦µ68mm or 77mmX33mm culture utensil
    Match to install ¦µ68mm culture utensil
    Filter
    Blue filter
    Green filter
    Frosted filter

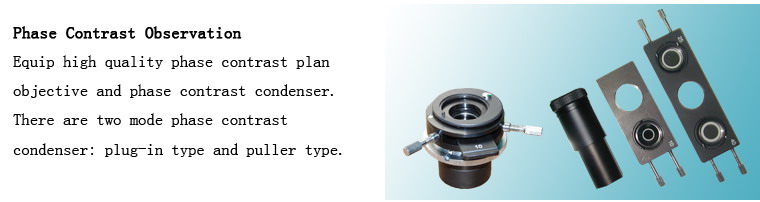

    Impellent style phase contrast unit
    Centering telescope
    10X Impellent style phase plate

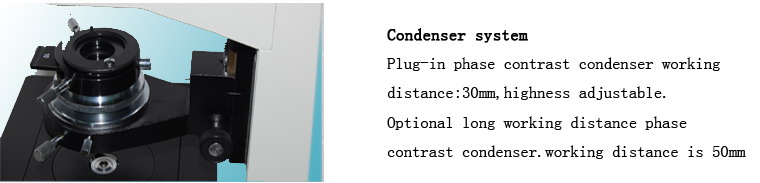

    Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm

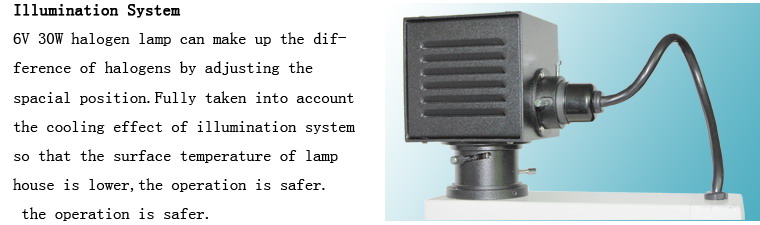

    Light source
     20W Halogen lamp with brightness control.























    Optional accessories
    Name
    Sort/Technique parameter
    Remark
    Eyepiece
    WF16X(Φ11mm)

    Dividing  10X(¦µ20mm), 0.1mm/Div

    Nosepiece
    Quintuple(Ball bearing inner locating)

    Condenser
    Ultra long working distance,W.D.:70mm

    Filter
    Yellow filter

    Impellent style phase contrast unit
    Objectives
    Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP

    Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP

    Impellent phase plate
    25X

    40X

    Sliding phase contrast unit
    Objectives
    Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2

    Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2

    Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2

    Sliding phase plate
    10X

    25X/40X

    Condenser Rack & pinion adjustable, NA=0.4,working distance: 55mm

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    LISSCAM series camera





    Digital camera adapter
    CANON digital camera adapter(A610,A620,A630,A640)

    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece

    4X Focusing photograph attachment

    MD Adapter

    PK Adapter
