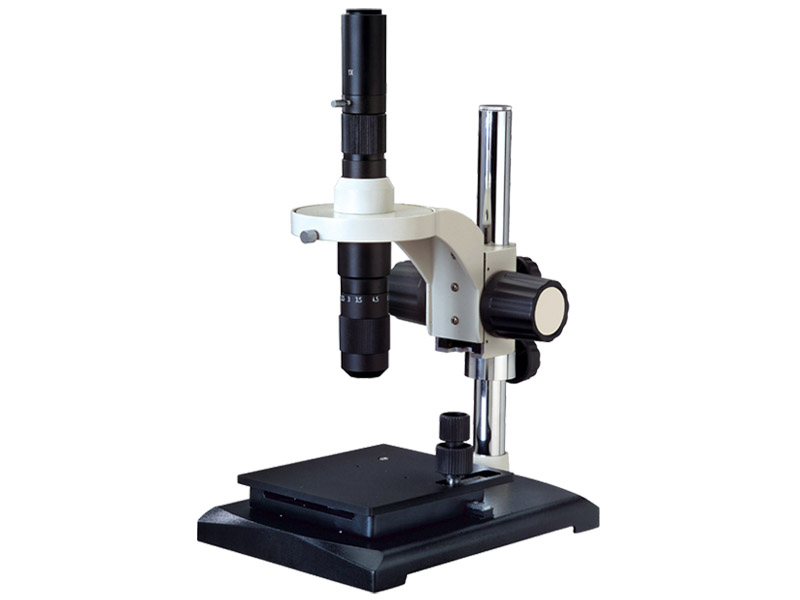

XTM series monocular zoom microscopes, they have long working distance, clear and smooth image quality, convenience operation etc. They can be used for inspection of electro-industry product line and printed circuit board.

Feature
▲ Standard C mount design, connecting the camera directly.
▲  Digital & video camera, CCD camera and photography eyepiece can be chosen.
▲  XTM-1 series are equipped with outside rotating optical body.
▲        XTM-2 series are equipped with inside rotating optical body,  annular LED illumination can be chosen.
▲        Objective range of zoom magnification 0.7X~4.5X.

Product configuration and main parameter

XTM-1 series

XTM-1A		XTM-1B		XTM-1C
Model Specification	XTM-1A		XTM-1B		XTM-1C
CCD adapter	1X
Objective	Objectives range of zoom magnification  0.7X~4.5X
Working distance	88mm
Vertical effective movement	10mm<=h<215mm		10mm<=h<265mm		10mm<=h<240mm

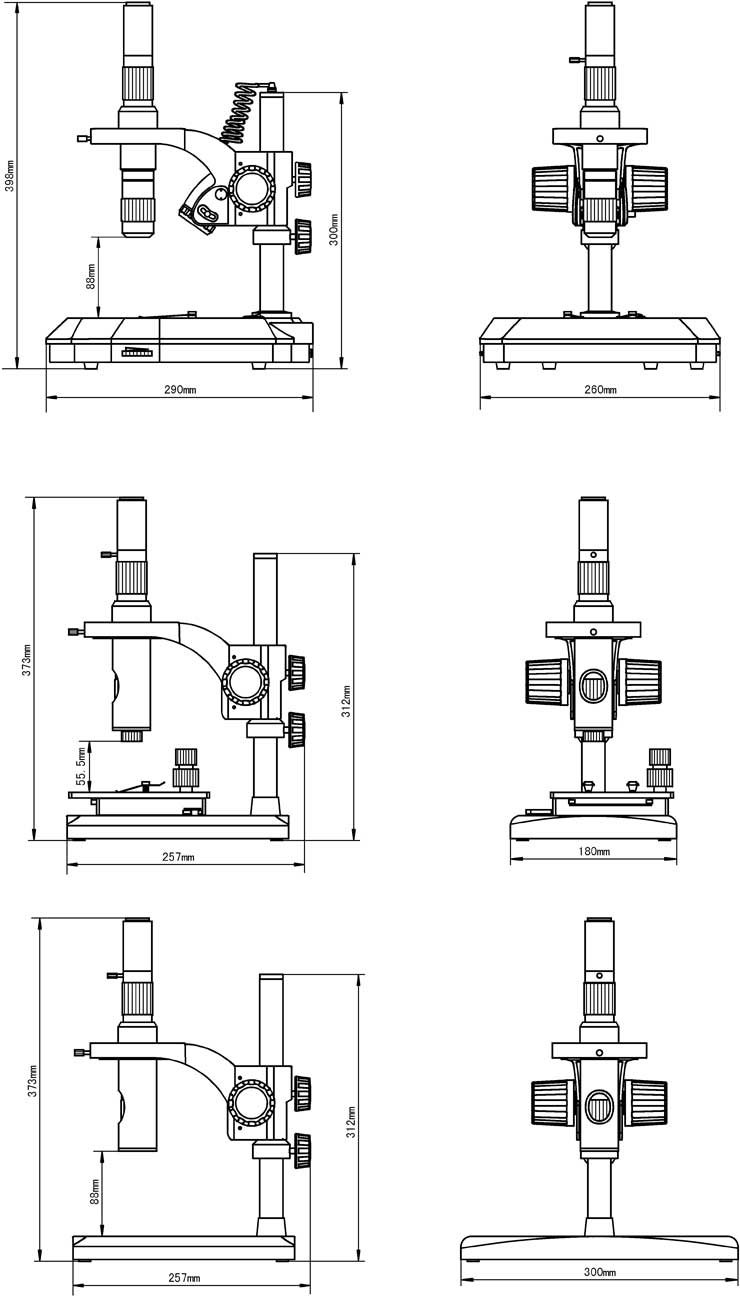

Base size	260X290X55mm		300X240X25mm		240X180X25(mm) with movable stage, movement range:42X42(mm)
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness		No light source

XTM-2 series

XTM-2A		XTM-2B		XTM-2C
Model Specification	XTM-2A		XTM-2B		XTM-2C
CCD adapter	1X
Objective	Objectives range of zoom magnification  0.7X~4.5X
Working distance	88mm
Vertical effective movement	10mm<=h<215mm		10mm<=h<265mm		10mm<=h<240mm
Base size	260X290X55mm		300X240X25mm		240X180X25(mm)with movable stage, movement range:42X42(mm)
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness		No light source

Optional accessories
