• Introduction

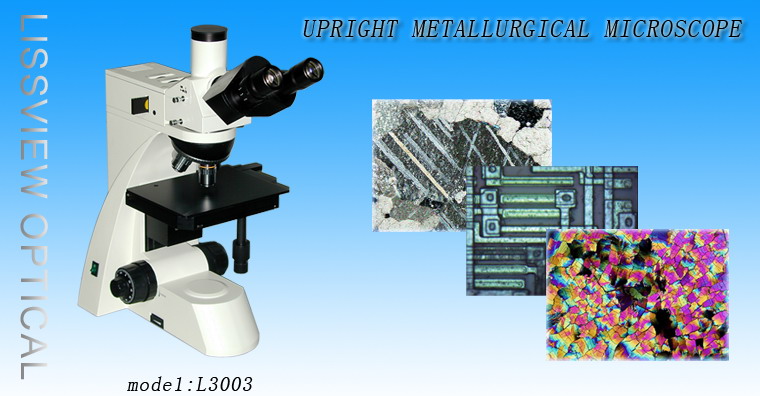

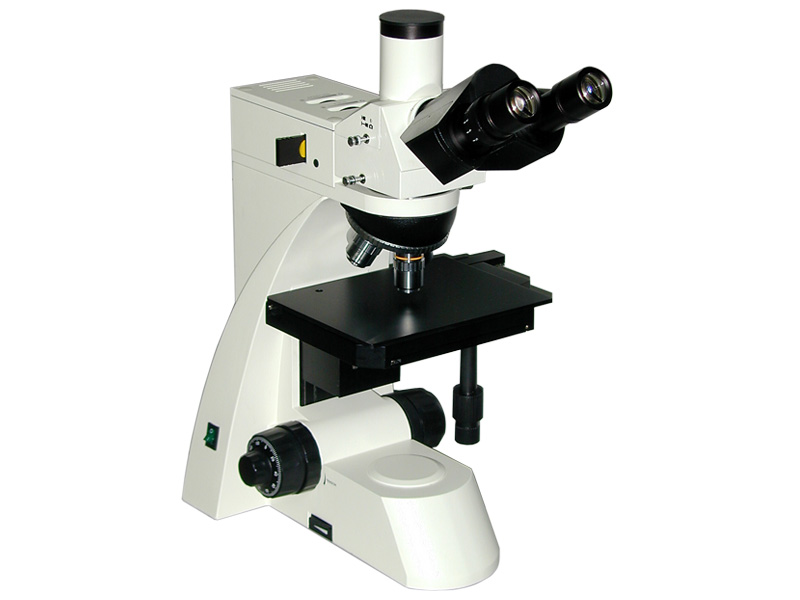

  • L3003 reflected metallurgical microscope is suitable to observe the surfaces of non-transparent object. It is equipped with vertical illuminator, plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in  trinocular. It provide clear and high-contrast picture, beautiful sculpt, convenient operation, etc. It is the ideal instruments for research work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.

    Features
    ▲  With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.

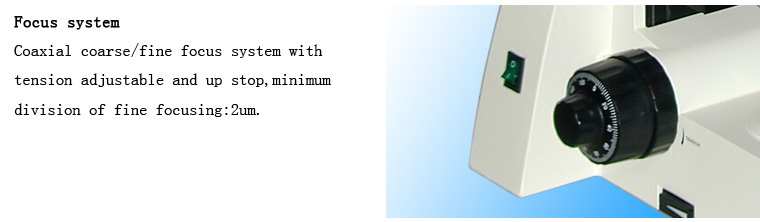

    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    ▲  6V 20W halogen lamp, adjustable brightness.

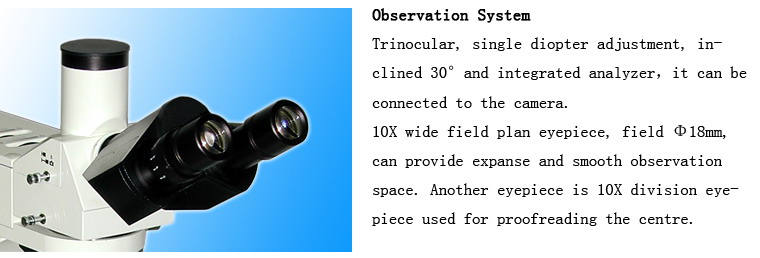

    ▲  Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.








  •  Standard Configuration

    Model
    L3003
    Eyepiece
    Wide field  WF10X(Φ18mm)
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
    Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
    Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
    Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
    Eyepieces tube
    Trinocular,Inclination of 30˚, (Analyzer with field diaphragm to switch)

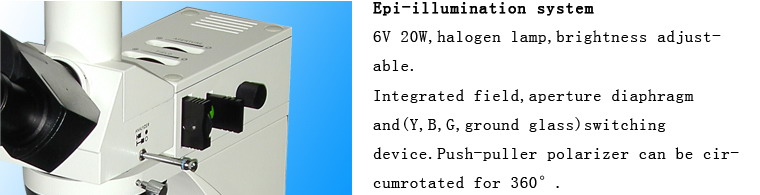

    Vertical illumination unit
    6V 20W, Halogen lamp,Adjustable brightness
    Vertical illumination With field diaphragm ,aperture diaphragm and polarizer,(Y,B,G)filter and Ground glass
    Focus system
    Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple Backward ball bearing inner locating
    Stage
    Double layer mechanical ( Size: 210mmX140mm,movingrange:63mmX50mm)















    Optional accessories
    Name
    Sort/Technique parameter
    NO.
    Eyepiece
    Wide field  WF16X(Φ11mm)
    1051016
    Dividing  10X(Φ18mm) 0.1mm/Div
    1121010
    Objective
    Plan achromatic objectives with long working distance (no cover glass) PL L 40X/0.60
    2250140
    Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring)
    2250160
    Plan achromatic objectives with long working distance (no cover glass) PL L 80X/0.80
    2250180
    Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring)
    2250111
    Plan achromatic objectives (no cover glass) PL 100X/1.25(Spring, oil)
    2240111
    Nosepiece
    Quintuple Backward ball bearing inner locating
    032002

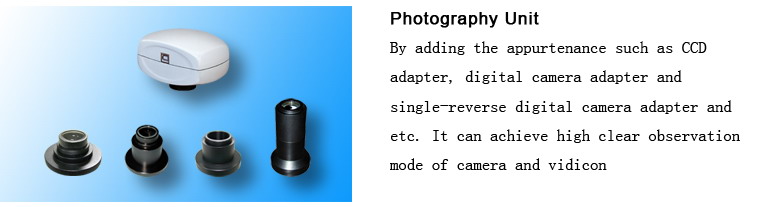

    CCD adapter
    0.4X
    810001
    0.5X
    810004
    1X
    810002
    0.5X with dividing 0.1mm/Div
    810003
    Camera
    DV-1 With USB & video output
    800001
    DV-2 With USB output
    800003
    DV-3 With video output
    800005
    Photo unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece
    840001
    4X Focusing photograph attachment
    840002
    MD Adapter
    840003
    PK Adapter
    840004
    Digital camera adapter
    CANON(A610,A620,A630,A640)
    820001



  •
