  • Introduction

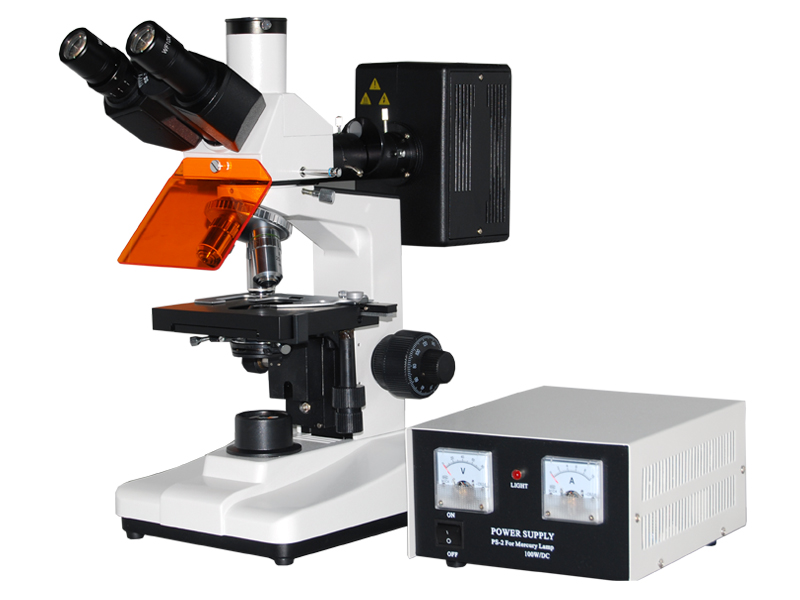

  • L1501 Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation. It is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

    Features
    ▲  With wide field eyepieces and achromatic objectives, the field of view is widely and clear

    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

    ▲  6Volt 20Watt Halogen lamp with brightness control

  • Standard Configuration

    Model
    L1501
    Eyepiece
    Wide field WF10X(¦µ18mm)
    Objective
    Achromatic 4X/0.10
    Achromatic 10X/0.25
    Achromatic 100X/1.25(Spring, oil)
    Fluorescence 25X/0.65
    Eyepiece tube
    Trinocular  (inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
     20W Halogen lamp with brightness control.

    Reflected fluorescence system
    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system  B exciton wavelength:450~490nm
    Fluorescence filter system  G exciton wavelength:495~555nm






















    Optional accessories
    Name
    Sort/Technique parameter
    Remark
    Eyepiece
    Wide field WF16X(Φ11mm)

    10X dividing eyepiece 0.1mm/Div

    Objective
    Fluorescence objectives FL 40X/1.00  (Spring, Glycerin)

    Fluorescence objectives FL 100X/1.25 (Spring, Glycerin)

    Nosepiece
    Quintuple(Backward ball bearing inner locating)

    Filter
    Green filter

    Yellow filter

    Fluorescence power supply
    100W fluorescence power supply(Wide voltage range and constant power and calculagraph)

    Reflected fluorescence system
    Fluorescence filter system  UV exciton wavelength:320~380nm

    Fluorescence filter system  V exciton wavelength:380~415nm

    Phase contrast unit
    Eyepiece
    Centering telescope

    Objectives
    Phase contrast plan achromatic 10X/0.25 PHP

    Phase contrast plan achromatic 20X/0.40 PHP

    Phase contrast plan achromatic 40X/0.65 PHP(Spring)

    Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

    (PH-1) Turnplate phase contrast condenser

    (PH-2) Turnplate phase contrast condenser

    Flashboard phase contrast condenser

    Pull board phase contrast condenser

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    LISSCAM series camera





    Digital camera adapter
    CANON digital camera adapter(A610,A620,A630,A640)

    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece

    4X Focusing photograph attachment

    MD Adapter

    PK Adapter







































  •
