  • Introduction

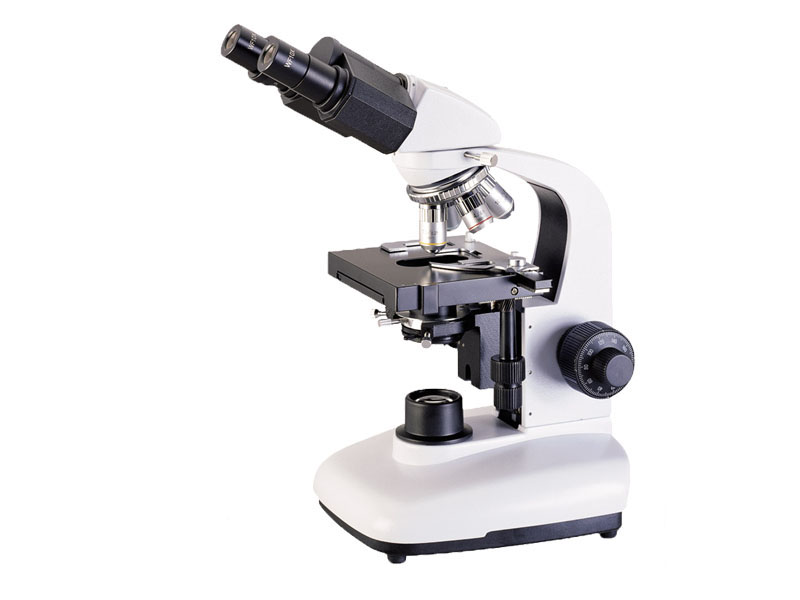

  • L1650 series biological microscopes are equipped with achromatic objectives or semi-plan achromatic and wide field eyepieces. They provide clear image and wide field. They can be used for biology medicine and agriculture area widely. They are the ideal instruments in medical treatment and scientific research.


    Features
    ▲  With wide field eyepieces, achromatic objectives or semi-plan achromatic, the field of view is widely and clear

    ▲  Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

    ▲   20Watt Halogen lamp with brightness control

  • Standard Configuration

    Model
    L1650A
    L1650B
    Eyepiece
    Wide field WF10X(Φ18mm)
    Objective
    Achromatic 4X/0.10
    Semi-plan achromatic 4X/0.10
    Achromatic 10X/0.25
    Semi-plan achromatic 10X/0.25
    Achromatic 40X/0.65(Spring)
    Semi-plan achromatic 40X/0.65(Spring)
    Achromatic 100X/1.25(Spring, oil)
    Semi-plan achromatic 100X/1.25(Spring, oil)
    Eyepiece tube
    Binocular(Inclination of 30˚)
    Focus system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
    Abbe condenser
    N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light source
      Halogen lamp with brightness control

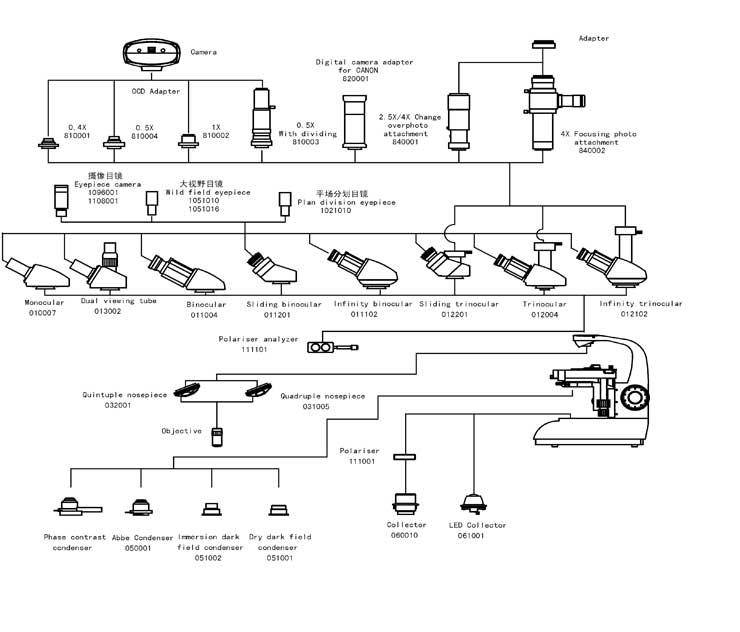

     Optional accessories
    Name
    Sort/Technique parameter
    Remark
    Eyepiece
    Wide field  WF16X(Φ11mm)

    Dividing   10X(Φ18mm)  0.1mm/Div

    Objective
    Plan achromatic  4X/0.10

    Plan achromatic  5X/0.12

    Plan achromatic  10X/0.25

    Plan achromatic  20X/0.40

    Plan achromatic  40X/0.65(Spring)

    Plan achromatic  60X/0.85(Spring)

    Plan achromatic  100X/1.25(Spring, oil)

    Eyepiece tube
    Monocular( Inclination of 30˚)

    Binocular, Sliding(Inclination of 45˚)

    Trinocular, Sliding(Inclination of 45˚)

    Trinocular(Inclination of 30˚)

    Dual viewing tube(Inclination of 30˚)

    Nosepiece
    Quintuple(Backward ball bearing inner locating)

    Filter
    Green filter

    Yellow filter

    Light source
    LED Collector
    Bright and white light

    Condenser
    Dark field
    Dry

    Immersion

    Phase contrast unit
    Eyepiece
    Centering telescope

    Objectives
    Phase contrast plan achromatic 10X/0.25 PHP

    Phase contrast plan achromatic 20X/0.40 PHP

    Phase contrast plan achromatic 40X/0.65 PHP(Spring)

    Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

    (PH-¢ñ) Turnplate phase contrast condenser

    (PH-¢ò) Turnplate phase contrast condenser

    Flashboard phase contrast condenser

    Pull board phase contrast condenser

    Infinity optical system
    Eyepiece tube
    Binocular (Inclination of 30˚)

    Trinocular (Inclination of 30˚)

    Eyepiece
    Centering telescope

    Objectives
    Infinity plan achromatic 4X/0.10

    Infinity plan achromatic 10X/0.25

    Infinity plan achromatic 20X/0.40

    Infinity plan achromatic 40X/0.65(Spring)

    Infinity plan achromatic 100X/1.25(Spring, oil)

    Infinity phase contrast plan achromatic 10X/0.25 PHP

    Infinity phase contrast plan achromatic 20X/0.40 PHP

    Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)

    Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)

    CCD adapter
    0.4X

    0.5X

    1X

    0.5X with dividing 0.1mm/Div

    Camera
    LISSCAM series camera





    Photography
    USB Output

    VIDEO Output

    Digital camera adapter
    CANON Digital camera adapter(A610,A620,A630,A640)

    Photograph unit
    2.5X/4X Change over photograph attachment with 10X viewing eyepiece

    4X Focusing photograph attachment

    MD Adapter

    PK Adapter

    Facility polarize
    Polarizer(360° rotatable stage)

    Analyzer

    Adapter
    Input: 230V¡«50/60HZ   Output: 9V  500mA

    Input: 110V¡«50/60HZ   Output: 9V  500mA






























































  •


  •
