  • Introduction

  •

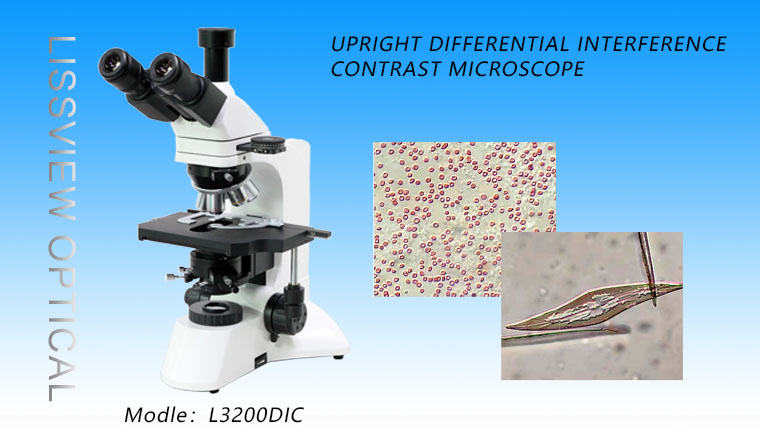

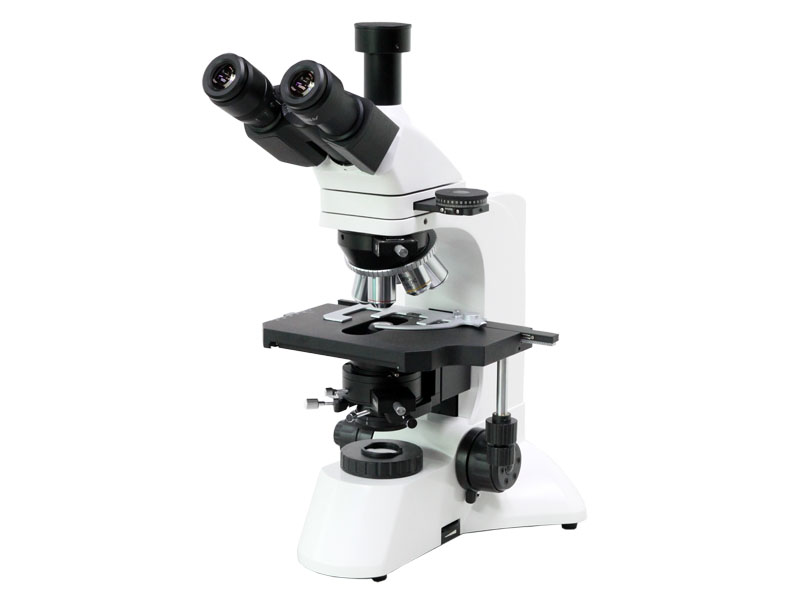

    L3200DIC upright differential interference contrast microscope is suitable for high resolution microscopic observation of transparent or translucent samples. The product adopts transmission differential interference contrast optical system, equip with infinity & long distance plan field achromatic objectives, and large field eyepieces without chromatic aberration . The product adopts the modular design concept, which can be attached to the product. The contrast microscopic observation device has beautiful appearance and easy operation. It is an ideal instrument in the field of biomedical engineering.









  •

    Specification
    Eyepiece
    10X Wide-field plan eyepiece，field of view number Ф22mm
    Centering telescope eyepiece
    Infinity and long working distance plan achromatic objective
    Type
    Magnification
    Number aperture
    Working distance (mm)
    Thickness of cover glass (mm)
    DICl objective
    5
    0.12
    15.7
    -
    10
    0.25
    20.2
    -
    20
    0.35
    6.0
    -
    Normal objective
    40
    0.65
    0.66
    0.17
    100
    1.25(oil)
    0.33
    0.17
    Eyepiece tube

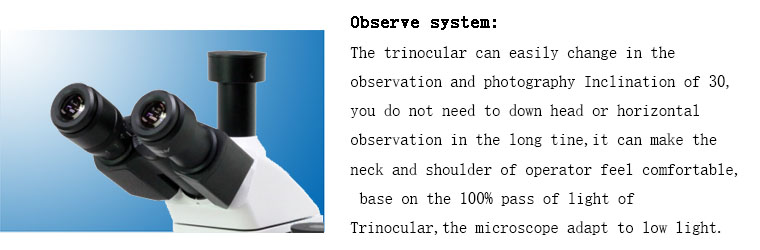

    Inclination of 30˚ and interpupillary distance is 53~75mm.
    Focusing system
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
    Nosepiece
    Quintuple nosepiece

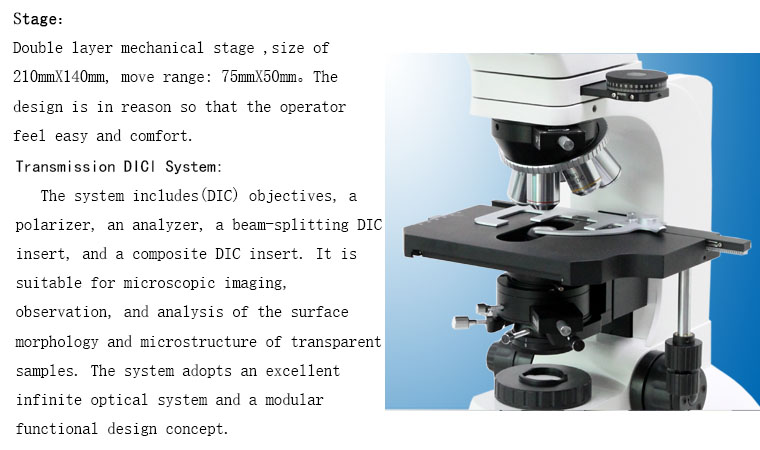

    Stage
    Double layer mechanical (Size:210mmX140mm, movingrange:75mmX50mm)
    Differential interference contrast Condenser system
    The transmission type differential interferometric contrast concentrator is designed by the integral structure. The polarizer, differential interference prism and Abbe concentrator are joined together, and all kinds of filter lenses can be attached,the device can be lifted vertically.

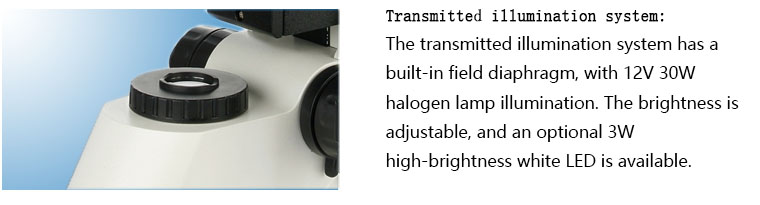

    Light source
    6V30W halogen, brightness enable control
    Optional Accessory
    Eyepiece
    ividing eyepiece(field number:Φ22mm)   0.10mm / Div
    Phase contrast objective
    PL L 5/0.12 PHP2 working distance:15.7
    PL L 10/0.25 PHP2 working distance:4.3
    PL L20/0.40 PHP2 working distance:8.0, Thickness of cover glass is 0.17mm
    PL L 40/0.65 PHP2 working distance:0.66, Thickness of cover glass is0.17 mm
    Condenser
    Phase Contrast condenser for 10X,20X,40X objective
    Filter
    Blue  filter,Green filter,Yellow filter

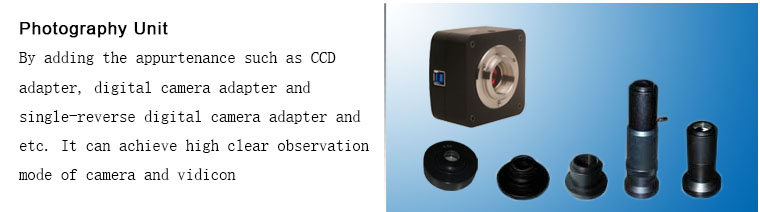

    CCD adapter
    0.5X, 0.65X, 1X  with C-mount
    0.5X with dividing
    Digital camera
    LISSCAM300  3 million pixels with USB 2.0
    LISSCAM500  5 million pixels with USB 2.0
    LISSCAM500WIFI  5 million pixels with USB 2.0 and WIFI
    LISSCAM1000  10 million pixels with USB 2.0
    Digital camera adapter
    CANON (EF)  NIKON (F)

  •

  •
